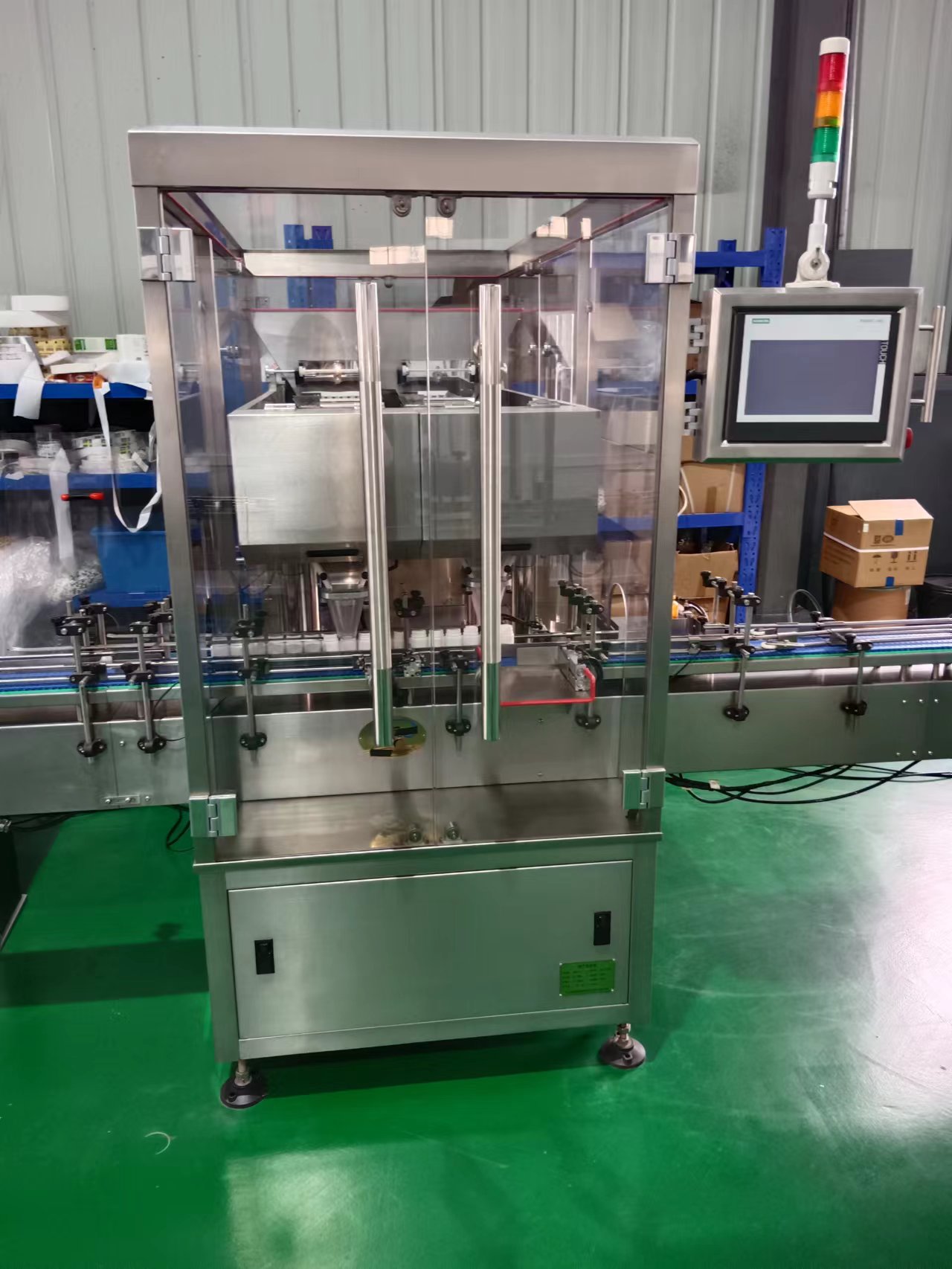

PBDS-16 16-CHANNEL TABLET OR CAPSULE OR COUNTING MACHINE

PBDS-16 16-CHANNEL  TABLET OR CAPSULE OR COUNTING MACHINE

1.  Equipped with Premium Infrared Sensor to increase the infrared intensity automatically for counting accuracy .

2.  Suitable for counting any sizes and shapes of capsules, softgels, tablets,chewing gum , round pills and other solid materials without parts change over.

3.  Maximum counting amount is up to 9,999 pcs per container.

4.  Equipped with a buffer bucket to blockade the capsules/tablets fallings while containers are moving. This design allows the vibrating feeder continuous running.

5.  The counter has three-stage vibrators to infeed tablets or capsules; vibrating frequency adjustable for quick and stable infeeding .

6.  Bottles are positioned and changed by air cylinder to ensure accuracy positioning prior to filling to avoid spillage.

7.  TOUCH SCREEN CONTROL shows the running condition as well as the self-detection system

8.  Equipped with a perforated screen to trap dust or tablet chip by attaching a vacuum cleaner .

9.  15 sets of parameter settings contribute to the production switch friendly and quickly.

10. Stainless steel 304 main machine frame and housing .

11.  Easy to dismantle with a minimum amount of parts for clean up.

12.  No high-speed moving motion, thus no wearing parts.

13. All product contact parts are made of Stainless steel 316 .

14.  Accurate counting system, No bottle—No fill!

16.  Compatible design allows for attaching a capping machine, a labeling machine and a cartoning machine to become a line-up production.

17.  Automatic rejection system rejects faulty products.

18.  This machine equips the voltage-stabilization system , on the voltage-unstable area, the machine can work normally .

19. this machine has the air blow system besides the counting sensor windows which can blow the dusts on the sensor windows --This function of this machine can normally count the tablets with big powder .

Electronic capsule/tablet counter machine TECHNICAL DETAILS

Model	PBDS-16
capacity	Max.100 bottles/min
Accuracy	1/10000 bottles
Size of Bottle	15-500ML    bottle mouth: φ20~100mm
Voltage	AC220V , Single Phase, 50/60Hz
Power	1.1KW
Air Consumption	1.6 M3/h
Hopper Volume	30ltrs
Overall Dimension	2600 (L ) *1600( W ) * 1600 ( H)mm
Weight	360kg (with conveyor)

COMPARISION BETWEEN DOMESTIC COMPETITOR

No.	Company / Feature	PBDS-16 ( 16 channel )	Competitor 24 channel (Especially other manufacturer in China )
3	Production Shifting	Reset different products Within 5 sec	Change the spare parts such like the entry of Product Falling, replace different products within 20-30min
4	Minimum Tablet Available	Dia.3mm	Dia.5mm
5	Automatic Rejection System	Auto- rejection system detects broken chips or tablets and reject is available	Attaching the rejection system is just formal which  can’t work actually .
6	Environmental light interfered	Hardly effected	easy to be interfered and cause counting inaccuracy
7	Beam Offset	Accurately and Gradually	NO Beam Offset ,not accurate any more under the Dust Atmosphere
8	Accuracy	1/10,000 bottles	1/1,000 bottles
9	Convenient to maintain	We Adopt photo-electricity chip of American leading manufacturer which makes the circuit simple and easy maintaining .	Circuit complicated ,inconvenient to maintain
11	Interfered by environmental signal	Stable working even in 1800 volts interfered	Extremely poor
