Product Description

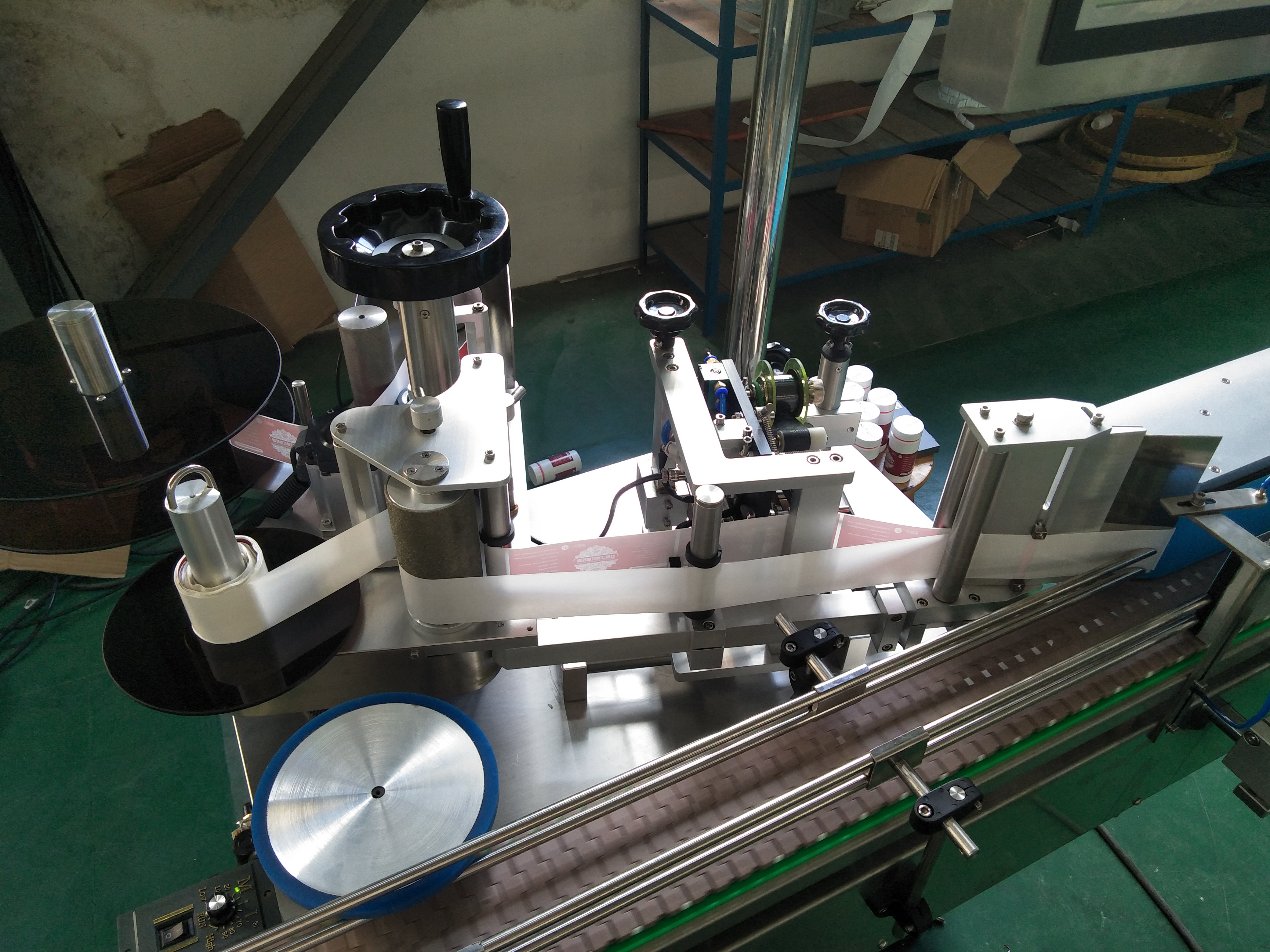

PBTB-160 SELF-ADHESIVE LABELLING MACHINE
• Applicable for different size round plastic bottles and glass bottles without parts change over.
• Stainless steel SUS 304 main machine frame and housing .
• The code hot printer can print the batch numbers ( 2,3 line ) on the label during labeling .
• One sensor for the bottle coming into the labeling area ( no bottle,no labeling ) .
• 1 set sensor system are installed to ensure smooth and precise labeling and accurate label delivery.
• One conveyor for bottles transmission with speed variator .
• SIEMENS HMI TOUCH SCREEN CONTROL .
• Meets GMP requirement .
TECHNICAL DETAILS
Model | PBTB-160 |
capacity | Max. 130 Bottles/min |
Size of Container | Diameter :30-110mm Height :30-200mm ( Round Bottle ) |
Voltage | AC220V 50/60HZ Single-phase |
Power | 1100 W |
Air consumption | 0.2 M3/h |
Overall Dimension | (L) 2000 × (W) 1150 × (H) 1650mm |
Weight | 250KG |
PHOTO | Electric Spare parts Cabinet |
