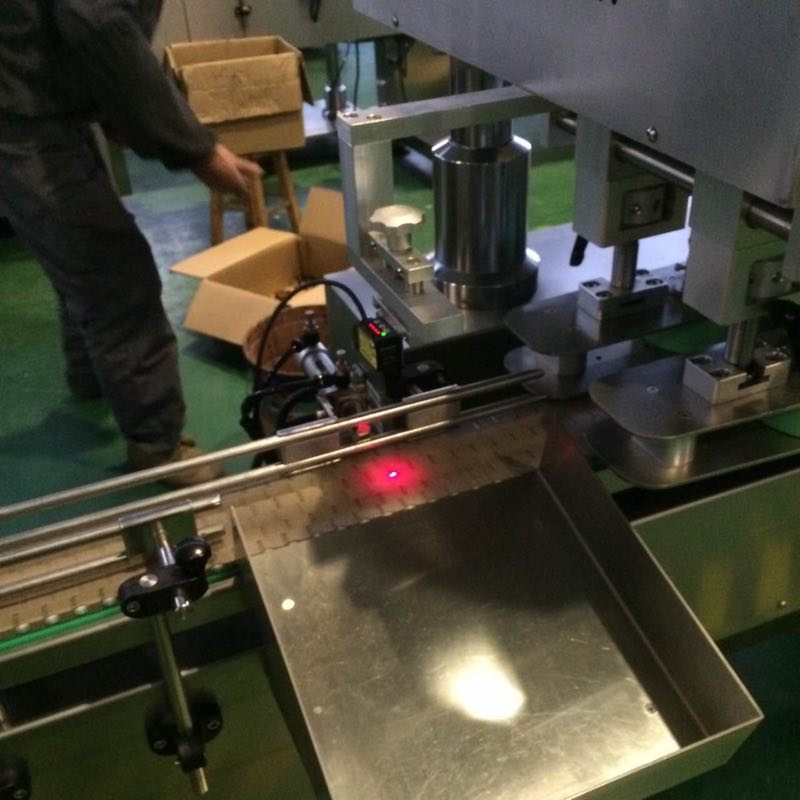

PBX-160 FULLY-AUTOMATIC SCREW CAPPING MACHINE

PBX-160 FULLY-AUTOMATIC SCREW CAPPING MACHINE

• Applicable for different -size round, square bottles and containers .

• Stainless steel 304 main machine frame and housing .

• Large capacity floor level cap hopper to stock caps for long -time running without continual refilling.

• Four groups of capping wheels to screw the caps properly and completely .

• The machine will pause automatically if the bottles are choked in the conveyor belt.

• Cap slide chute monitoring sensor - no cap feed , No bottle feed .

• A set of adjustable cap slide chute .

• Rejection system for improperly capped bottle .

• One conveyor for bottles transmission with speed variator .

• SIEMENS HMI TOUCH SCREEN CONTROL .

• Meets GMP requirement .

Fully automatic bottle screw capping machine TECHNICAL DETIALS

Model	PBX-160
capacity	Max. 120 Bottles/Min （ Depends on the bottle mouth Dia.)
Size of Cap	Dia. 20-65 MM
Size of Bottle	15-500 ML
Power	220V , Single Phase, 50/60Hz    2000W
Overall Dimension	2600 (L)*1100(W)*2000(H)mm
Weight	500kg (with conveyor)
