PBL-160 FULLY-AUTOMATIC BOTTLE UNSCRAMBLER

FULLY-AUTOMATIC BOTTLE UNSCRAMBLER

• This machine is used for loading and oriented supply of round/square plastic containers to the automatic line .

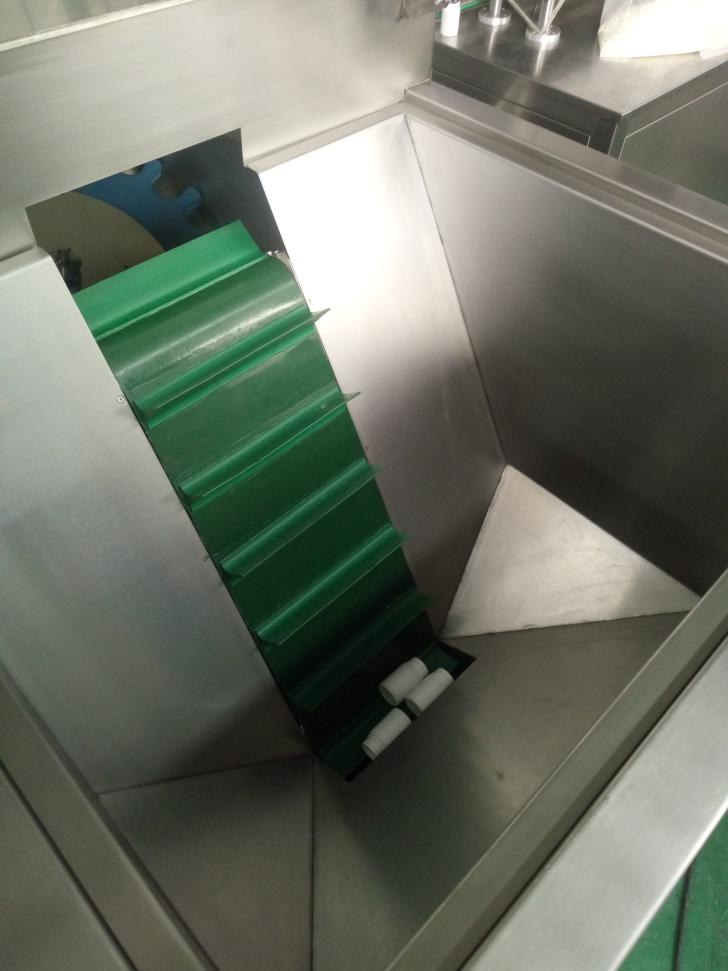

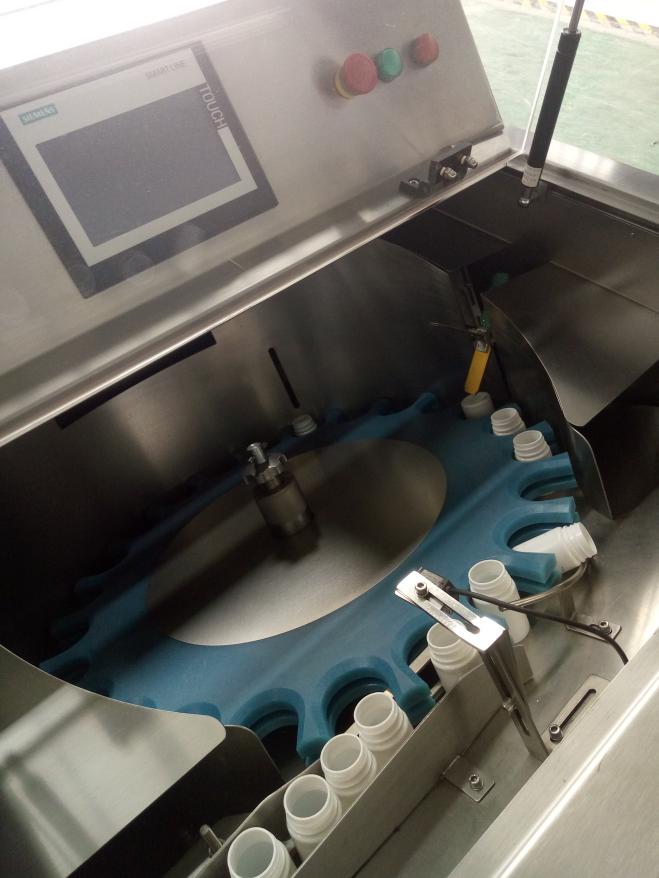

• Compact design with enclosed built –in hopper and disc sorter for noise elimination and space saving .

• The machine can guarantee every bottle are discharged upright and properly arranged onto conveyor with the sensor system .

• 304 Stainless steel frame and transparent enclosure panels .

• Different size containers determine different disc sorters relatively and easy to change the disc sorter for different size container within 5mins.

• Easy to dismantle with a minimum amount of parts for clean up .

• SIEMENS HMI TOUCH SCREEN CONTROL .

• REJECTION SYSTEM FOR FAULTY PRODUCT- Bottle Mouth Downward.

Fully automatic bottle unscrambler machine TECHNICAL DETAILS

 TECHNICAL DETAILS

Model	PBL-160
Max.capacity	120 Bottle/Min （ Depend on bottle size )
Size of Container	20ML-500ML
Suitable container	Round / square plastic containers
Voltage	AC220V , Single Phase, 50/60Hz
Power	0.3 KW
Air Consumption	0.2 M3/h
Overall Dimension	1006*1506*1200 mm
Weight	200kg
