Pbsm-160 Fully-automatic Cotton Inserter

BASIC MACHINE EQUIPMENT

01. Stainless steel SUS 304 main machine frame and housing.

02. This machine is suitable for all type of different size bottles without parts change over .

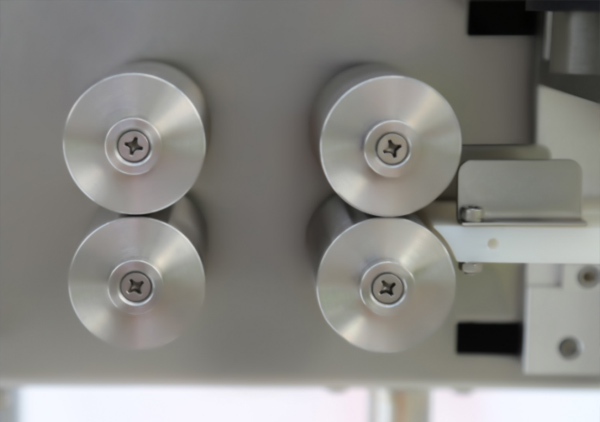

03.The cotton strip is dispensed by the 2 pairs of clamping rollers driven by the motor and electromagnetic clutch.

04.The dispensed cotton strip will be inserted into a tube upwards , When the tube with the cotton filled is transferred above the bottle opening , the cotton will be inserted into the bottle .

05.1 set of gating fingers driven by the cylinders is used to get the container positioned under the tube and release & change the container after one inserting run is complete.

06. The machine will pause automatically if the containers are absent or choke in the conveyor belt.

07.  HMI TOUCH SCREEN CONTROL .

08. One conveyor for bottles transmission with speed variator .

TECHNICAL DETAILS

Model	PBSM-160
Capacity	60 Bottles/Min
Size of Container	Dia. φ20~φ120mm
Air consumption	70L/min
Air pressure	0.5-0.7Mpa
Power Consumption	1KW
Power Source	220V 50/60HZ
Machine dimension	(L)1600 × (W)760× (H) 1540mm
Weight	230kgs



 ELECTRIC COMPONENT



NO.	NAME	MODEL	SPECIFICATION	QUANTITY	BRAND
1	INVERTER	SINAMICS V20	220V 0.37KW	1	SIEMENS
2	PLC	S7-200  SIMART	CPU ST40	1	SIEMENS
3	TOUCH SCREEN	SMART  700 IE	7寸 彩色	1	SIEMENS
4	SWITCH POWER	DVP-PS02	24V DC 2A	1	DELTA
5	RELAY	AHN22324N	24V DC	5	PANASONIC
6	SERVO DRIVE	MBDHT3520E	220V AC	1	PANASONIC
7	SERVO MOTOR	MSME082G10	220V 750W	1	PANASONIC
8	SERVO DRIVE	MBDHT2510E	220V AC	1	PANASONIC
9	SERVO MOTOR	MSME042G10	220V 400W	1	PANASONIC
10	PHOTO SWITCH	E3T	24V DC	1	IMS
11	APPROACH SWITCH	PR08-2DN	24V DC	1	AUTONICS
12	PHOTO SWITCH	E3Z-D61	24V DC	2	OMRON
13	AIR SWITCH	OSMC16A	16A 2P	1	SCHNEIDER
14	AIR SWITCH	OSMC4A	4A 1P	1	SCHNEIDER
