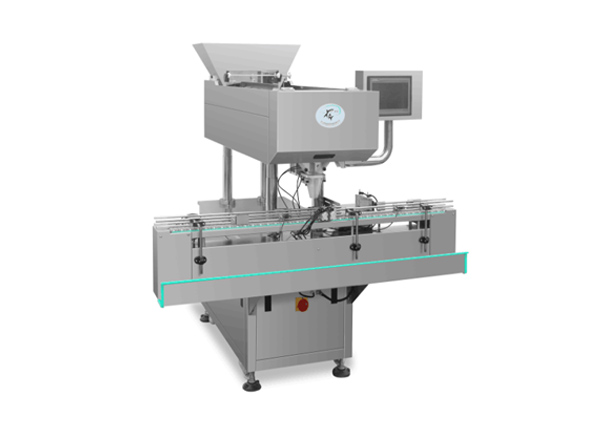

Electronic Tablet Or Capsule Counting Machine

BASIC MACHINE EQUIPMENT

01． Equipped with Premium Infrared Sensor to increase the infrared intensity automatically for 100% counting accuracy .

02． Suitable for counting any sizes and shapes of capsules, softgels, tablets, round pills and other solid materials without parts change over.

03． Maximum counting amount is up to 9,999 pcs per container.

04． Equipped with a buffer bucket to blockade the capsules/tablets fallings while containers are moving. This design allows the vibrating feeder continuous running.

05． The counter has three-stage vibrators to infeed tablets or capsules; vibrating frequency adjustable for quick and stable infeeding .

06． Bottles are positioned and changed by air cylinder to ensure accuracy positioning prior to filling to avoid spillage.

07． TOUCH SCREEN CONTROL shows the running condition as well as the self-detection system

08． 15 sets of parameter settings contribute to the production switch friendly and quickly.

09．  Stainless steel 304 main machine frame and housing .

10． Easy to dismantle with a minimum amount of parts for clean up.

11． No high-speed moving motion, thus no wearing parts.

12． All product contact parts are made of Stainless steel 316 .

13． Accurate counting system, No bottle—No fill!

14． Meets CGMP requirement.

15． Compatible design allows for attaching a capping machine, a labeling machine and a cartoning machine to become a line-up production.

17.  Automatic rejection system rejects faulty products.

16． This machine equips the voltage-stabilization system , on the voltage-unstable area, the machine can work normally .

17. This machine equips the air blow system which can air-blow the tablet dust on counting sensor every 1-2 mins .This system is good for the tablets with big dust .

18. One 1.6 Meter conveyor for bottles transmission with speed variator .

TECHNICAL DETAILS

Model	PBDS-4
capacity	Max. 50 bottles /min
Size of Capsule	#00-#5 Capsule
Size of Tablet	Max. Dia.22mm
Size of Bottle	15-500ML
Voltage	AC220V , Single Phase, 50/60Hz
Power	1000W
Air Consumption	0.8 M3/h
Hopper Volume	30ltrs
Overall Dimension	1600 (L ) *1600( W ) * 1600 ( H)mm
Weight	250kg (with conveyor)

PARTS LIST



NO.	NAME	TYPE	SPECIFICATION	QUANTITY	BRAND
1	INVERTER	MK3000P42	220V 0.4KW	2	PANASONIC
2	PROGRAMMABLE CONTROLLER	FP7CPS21	CPU	1	PANASONIC
3	485 Communication port	FP7CCM1		1	PANASONIC
4	INTERRUPT MODULE	FP7MXY332DWD	32 POINT	1	PANASONIC
5	TOUCH SCREEN	TPC1061HI	10 inch color	1	MITSUBISHI
6	INTELLIGENT FREQUENCY MODULATION VIBRATION CONTROLLER	SDVC34-MR	220V AC	2	SPECIAL MADE
7	IN-LINE   VIBRATOR		220V AC	2	SPECIAL MADE
8	PHOTO SWITCH	E3Z-G61	24V DC	2	OMRON
9	INTELLIGENT PHOTO COUNTING HEAD	IMS.CX2635T4(V30)-8-NPN	8-TRAY	1	SPECIAL MADE
10	POWER AMPLIFIER	PA08-3.5N	8 LINE OUTPUT	2	SPECIAL MADE
11	SWITCH POWER	DVP-PS05	24V 5A	1	DELTA
13	HIGH-SPEED VALVE	44C-ABA-GDFA-1GA	24V DC	4	MAC ( USA)
14	MAGNETIC VALVE	SY5120-5L-01	24V DC	6	JAPAN SMC
15	VALVE AIR CYLINDAR	CJ2KB16-40Z		4	JAPAN SMC

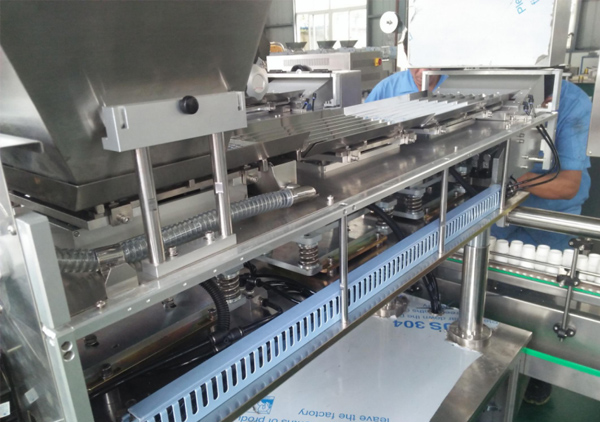

MACHINE INTERNAL STRUCTURE PHOTO

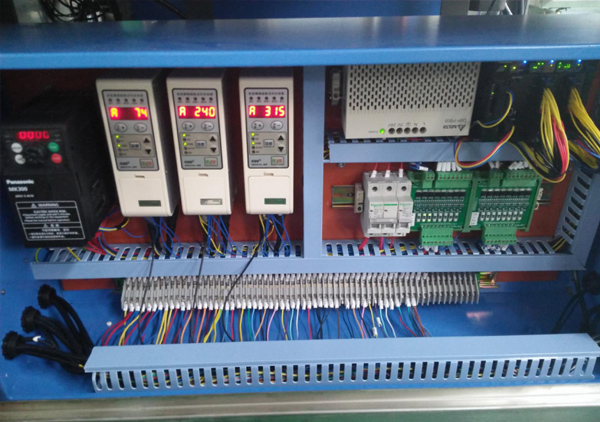

ELECTRICAL CABINET
